3D Printing Services
Professional-Grade 3D Printing Technology
At 3dPrototyping, we operate a diverse fleet of cutting-edge 3D printers, enabling us to handle everything from high-performance industrial materials to ultra-detailed resin prints.
Our Printer Fleet

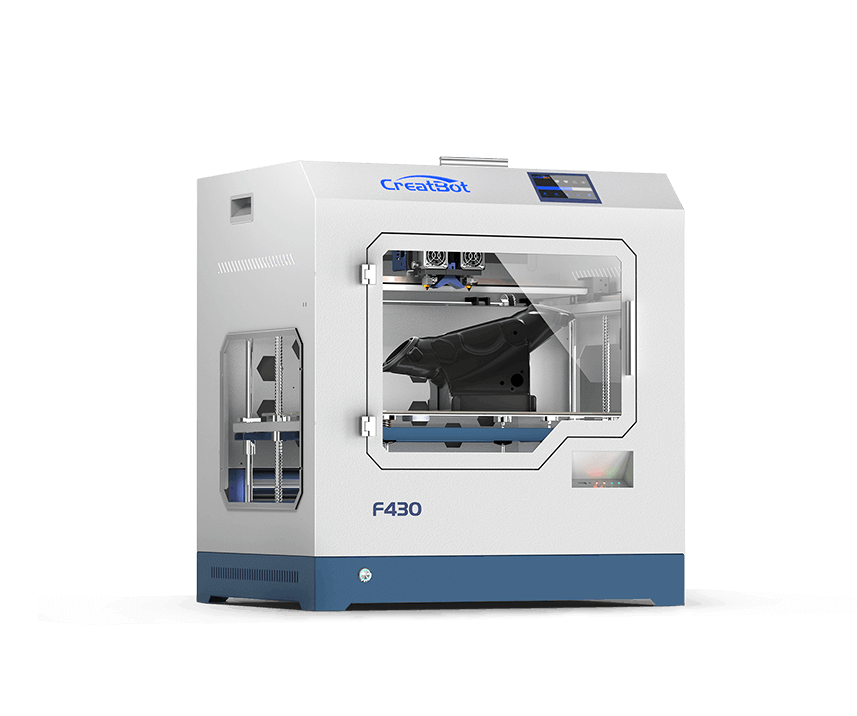

CreatBot F430 - Industrial-Grade FDM Printer
Our flagship FDM printer, the CreatBot F430 is a professional desktop 3D printer designed for demanding applications requiring industrial-grade materials.
Key Specifications:
- Build Volume: 400 × 300 × 300mm
- Dual Extruder System: 4th generation 1.75mm dual extruders
- Left Extruder: 260°C for standard materials
- Right Extruder: 420°C martensite steel hotend for high-performance materials
- Resolution: 0.04mm (40 microns)
- Heated Chamber: Up to 70°C for industrial filaments
- Auto-Leveling: Z-axis intelligent compensation
High-Performance Materials:
- Metal Fill
- ULTEM (Polyetherimide)
- PEEK (Polyether Ether Ketone)
- CF-PEEK (Carbon Fiber PEEK)
Industrial-Grade Materials:
- Glass Fiber Reinforced Filaments
- Carbon Fiber Composites
- Nylon+ (Enhanced Nylon)
- PC (Polycarbonate)
- ASA (Acrylonitrile Styrene Acrylate)
- TPU/TPE (Flexible Materials)
- PP (Polypropylene)
Also Compatible With:
- PLA, ABS, PETG
- Standard Nylon
- Carbon Fiber composites
Ideal For:
- Functional prototypes requiring high-temperature resistance
- End-use parts with exceptional mechanical properties
- Aerospace and automotive applications
- Chemical-resistant components
- Tooling and jigs

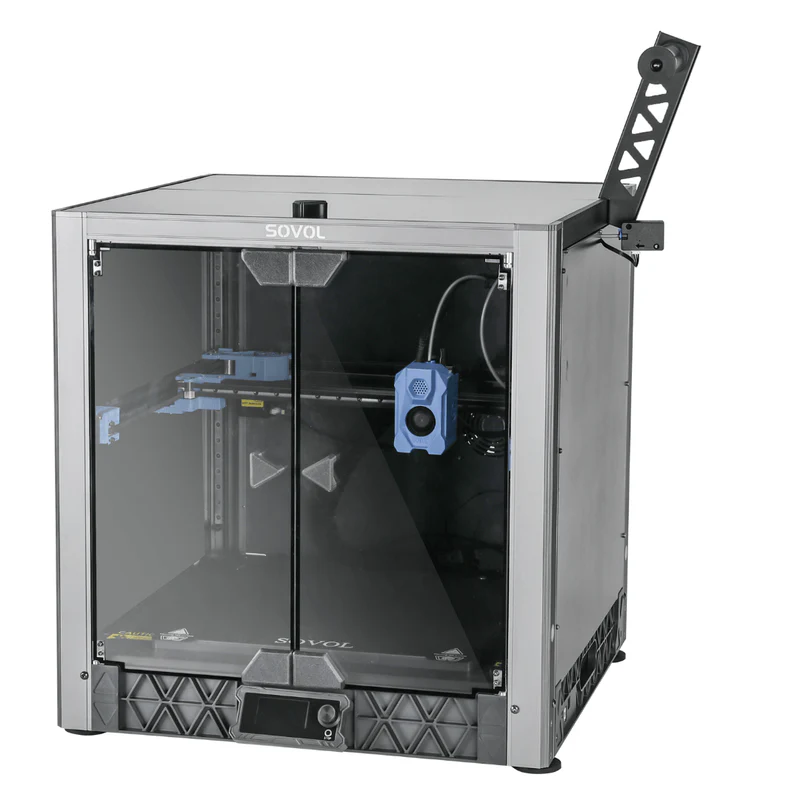

Sovol SV08 - High-Speed CoreXY Printer
The Sovol SV08 brings professional CoreXY performance with blazing-fast print speeds, perfect for rapid prototyping and high-volume projects.
Key Specifications:
- Build Volume: 350 × 350 × 345mm
- Print Speed: Up to 700mm/s
- Acceleration: 40,000 mm/s²
- Motion System: CoreXY with precision linear guide rails
- Leveling: Quad-Gantry-Leveling (QGL) with 4 independent Z motors
- Firmware: Advanced Klipper firmware
- Connectivity: WiFi/Ethernet with built-in camera for remote monitoring
Materials:
- PLA, PETG, ABS
- TPU and flexible materials
- Specialty filaments
Features:
- Dual-gear direct drive extruder
- Rapid heating: 220°C in 40 seconds
- Hot bed temperature up to 100°C
- 90% pre-assembled
Ideal For:
- Rapid prototyping with quick turnaround times
- Large-format prints
- High-volume production runs
- Remote monitoring requirements

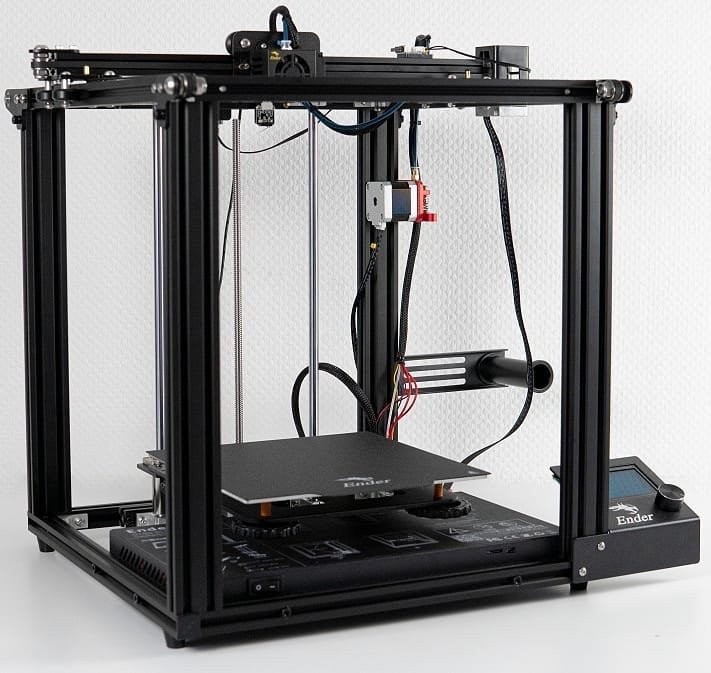

Creality Ender 5 Pro - Reliable Workhorse
The Ender 5 Pro is our reliable, cost-effective solution for standard prototyping and production needs.
Key Specifications:
- Build Volume: 220 × 220 × 300mm
- Layer Height: Minimum 100 microns
- Nozzle: Brass 1.75mm × 0.4mm (swappable to 0.3mm or 0.2mm)
- Maximum Nozzle Temperature: 260°C
- Silent Operation: V4.2.2 mainboard with TMC2208 drivers
Features:
- Metal extruder frame for consistent filament pressure
- Capricorn Bowden PTFE tubing
- Magnetic build surface (220 × 220mm)
- Dual Y-axis engines for stability
- 8mm-thick Z-axis rod
Materials:
- PLA, ABS, PETG
- TPU and flexible filaments
- Wood-fill and specialty filaments
Ideal For:
- General prototyping
- Educational projects
- Cost-effective production
- Standard mechanical parts

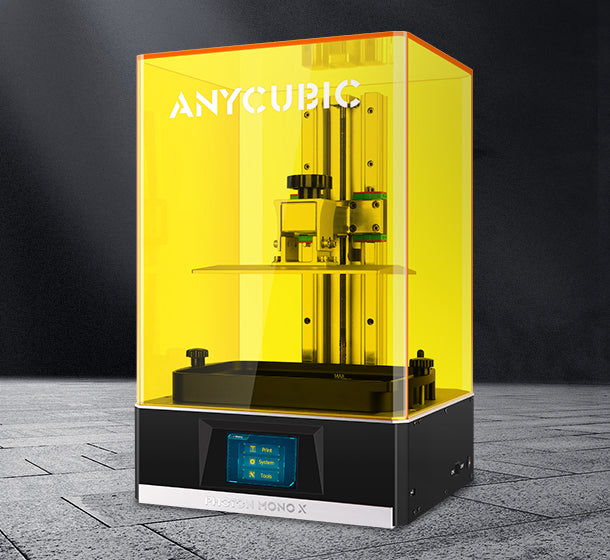

Anycubic Photon Mono X - Precision Resin Printing
Our resin printer delivers exceptional detail and surface finish for applications requiring the highest precision.
Key Specifications:
- Build Volume: 192 × 120 × 245mm
- Display: 8.9" 4K Monochrome LCD Screen
- XY Resolution: 0.050mm (3840 × 2400 pixels)
- Z-Axis Resolution: 0.01mm
- Layer Resolution: 0.01-0.15mm
- Print Speed: Up to 60mm/h
- Light Source: 405nm UV LED
Features:
- Exposure time as low as 1.5-2 seconds per layer
- Dual linear rail Z-axis for superior stability
- 3.5" touchscreen interface
- Safe design with automatic UV shutoff
- 8x anti-aliasing support
Materials:
- Standard 405nm UV resins
- Engineering resins
- Dental and medical-grade resins
- Castable resins for jewelry
- Flexible resins
Ideal For:
- Highly detailed miniatures and figurines
- Dental and medical models
- Jewelry masters and casting patterns
- Smooth surface finish requirements
- Intricate mechanical parts
Material Selection Guide
Standard Materials
Perfect for general prototyping, models, and non-critical applications.
Engineering Materials
Higher strength, temperature resistance, and durability for functional parts.
High-Performance Materials (F430 Specialty)
Industrial-grade materials for demanding applications requiring exceptional properties:
- Chemical resistance
- High-temperature operation
- Superior mechanical strength
- Specialized electrical properties
Resin Materials
Exceptional detail and surface finish for precision applications.
Our Process
- Consultation: We discuss your project requirements, material needs, and timeline
- File Review: Our team evaluates your CAD files for printability and optimization
- Material & Printer Selection: We recommend the optimal printer and material combination
- Printing: Your parts are produced with precision quality control
- Post-Processing: Cleaning, curing, support removal, and finishing as needed
- Quality Check: Final inspection to ensure parts meet specifications
- Delivery: Fast and secure delivery to your location
Why Choose Our 3D Printing Services?
- Multiple Technologies: FDM and resin printing capabilities
- Material Expertise: From basic PLA to exotic high-performance polymers
- Large Format: Build volumes up to 400 × 300 × 300mm
- High Speed: Rapid prototyping with our CoreXY system
- Precision: Resolution down to 10 microns for resin prints
- Industrial Capabilities: PEEK, ULTEM, and carbon fiber printing
Ready to start your 3D printing project? Contact us to discuss your requirements!
